LAUNCH X431 PRO Elite

Buy the Launch X431 PRO Elite if you want bidirectional active tests and a solid set of offline component-matching functions, component initialization, gearbox matching, seat and headlight adaptation, on an 8-inch tablet at a mid-tier Launch price. Skip it if you’re picturing full online ECU programming or cloud-based coding when you see “ECU Code” on the Amazon listing, Launch’s own product page explicitly says this model does not support that.

The short version: Amazon’s listing title calls this a “Bidirectional Scan Tool, ECU Code,” and bidirectional control checks out cleanly. ECU coding does not, at least not the way the Amazon title implies it. Launch’s own product page states, in its own words, that the PRO Elite “does not support offline and online ECU programming, does not support online ECU coding,” and can only “support some offline ECU coding functions,” meaning component matching and adaptation, not the deeper programming Amazon’s one-line claim suggests. More on that below.

What the PRO Elite Actually Does

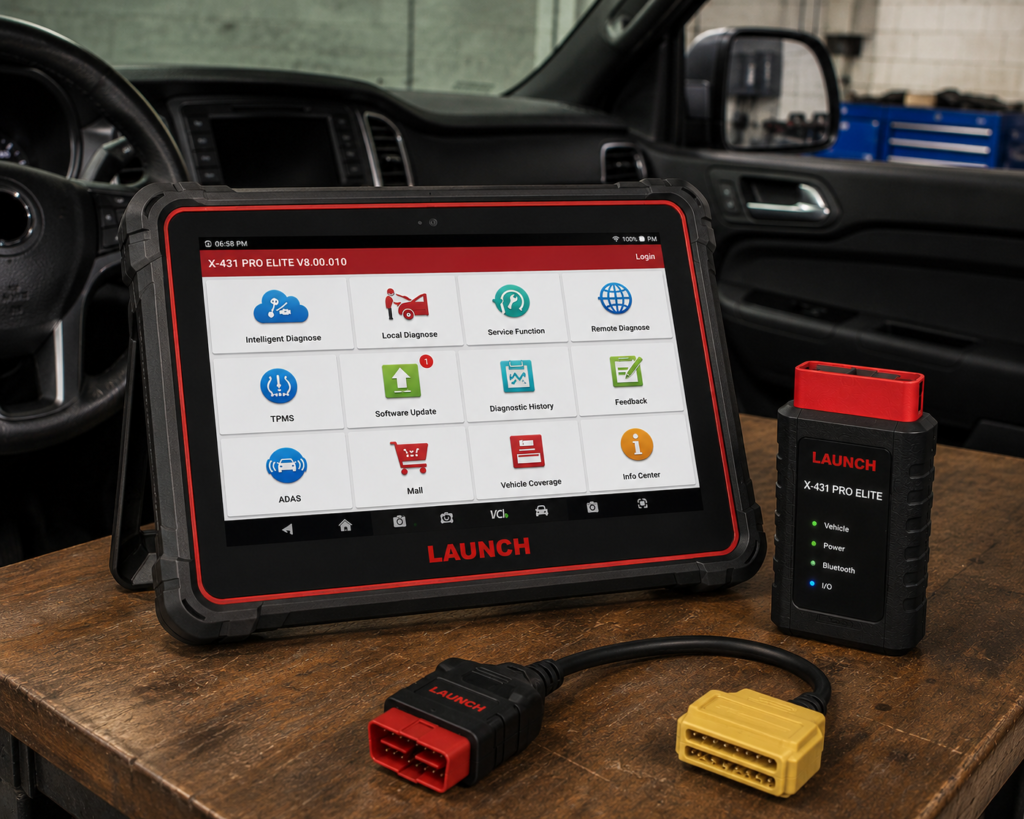

Launch’s own product documentation confirms an 8-inch touchscreen tablet, with independent comparison sources putting it at 1280×800 resolution on Android 10 with a 4-core processor, covering 150+ brands and roughly 20,000 vehicle models from 1996 onward. The tool connects to the vehicle over a wired cable rather than a wireless VCI, a genuine difference from Launch’s own PROS V5.0, which uses the wireless DBScar VII connector instead.

Bidirectional control is documented directly: Launch’s page describes active tests that send commands to systems and components to verify they’re working, radiator fan activation, throttle modulation, window and mirror operation, interior and exterior lighting, horn testing, door lock actuator testing, and injector buzz testing. On top of that, Launch documents over 32 maintenance service functions, including DPF and GPF regeneration, TPMS reset, oil lamp reset, throttle matching, steering angle reset, and high-voltage battery testing, plus FCA AutoAuth support for Secure Gateway vehicles and VAG guided functions included without a separate license.

The box includes the PRO Elite tablet, an AC adapter, a main cable, a USB cable, UK/US/EU plug adapters, and a user manual and quick guide, per Launch’s own product page.

What Amazon Says vs. What Launch Confirms

Amazon’s listing for this exact PRO Elite carries the title “LAUNCH X431 PRO Elite Bidirectional Scan Tool, ECU Code, 38+ Services | Same as Pro3s+ 5.0,” and separately markets CAN-FD/DoIP support, FCA AutoAuth, and VAG Guide. [Amazon]

Bidirectional control is independently confirmed on Launch’s own product page, with specific named active tests, safe to rely on. [Launch] ECU coding is where the two sources genuinely disagree, and not in a subtle way. Launch’s own page states plainly: “LAUNCH X431 PRO Elite does not support offline and online ECU programming, does not support online ECU coding.” The same page then clarifies the tool “can support some offline ECU coding functions,” listing gearbox matching, air suspension matching, seat matching, headlight fitting, door and window initialization, sunroof initialization, and injector calibration as what’s actually included. [Launch]

That’s a real, meaningful gap between what Amazon’s single-line “ECU Code” claim implies and what Launch’s own page documents in detail. Amazon’s title doesn’t distinguish “offline component matching” from “online ECU coding and programming,” a technician reading only the Amazon listing could reasonably expect deeper coding access than this tool actually provides. [Amazon] [Launch]

Amazon’s “Same as Pro3s+ 5.0” equivalence claim is also unconfirmed. That’s a different Launch product than the J2534-capable PRO3S+ Elite in SCG’s own catalog, and Launch’s own PRO Elite page doesn’t state an equivalence to any PRO3S+ variant. Treat it as an Amazon-only claim. [Amazon]

What this means for you: bidirectional active tests, the 32+ service functions, and CAN-FD/DoIP support are safe to rely on, both sources point the same direction. The “ECU Code” claim is not what it sounds like, it means offline component matching and adaptation on this model, not online coding or programming. The “Same as Pro3s+ 5.0” claim is Amazon-only.

ECU Coding Here Means Offline Component Matching, Not Online Programming

This is worth spelling out clearly because it’s the single most consequential gap between the marketing and the manufacturer’s own documentation. “ECU coding” as a phrase covers a wide range of actual work, from swapping a used part and telling the new module to recognize the car (component matching), to writing brand-new configuration data into a module over a secure online connection (online coding and programming). The PRO Elite, by Launch’s own admission on its own product page, does the first kind and explicitly not the second.

What that looks like in practice: replacing a headlight assembly and running headlight fitting so the new unit initializes correctly, or replacing a gearbox and running gearbox matching so the transmission control module accepts it, both are documented, real functions on this tool. What it doesn’t do is online, cloud-connected coding of the kind that unlocks hidden factory features or writes new configuration data into a module that didn’t come from a straightforward part swap. If that deeper level of coding is what you actually need, Launch’s own page for this exact model tells you directly that this isn’t the tool for it.

Where the PRO Elite Sits in Launch’s Own Lineup

Within SCG’s own catalog, the PRO Elite sits below its sibling Launch X431 PRO3S+ Elite, which bundles a J2534-compliant SmartLink C V2.0 module, genuine OEM-level pass-through programming hardware that lets a technician run manufacturer-specific programming software directly, at roughly double the PRO Elite’s price. That’s a real, hardware-backed capability difference, not a marketing distinction, J2534 access is a documented industry pass-through standard that goes further than either tool’s own coding functions.

Against Launch’s smaller CRP919-series tools in the same catalog, the comparison cuts the other way. The Launch X431 CRP919EBT bundles ECU coding, including VAG online coding for VW, Audi, and Skoda specifically, at a price meaningfully below the PRO Elite, and the Launch X431 CRP919E Lite sits below that as Launch’s most affordable bidirectional-capable tool, with coding available only as a separate paid add-on. Master Data records the PRO Elite at $689 with the ASIN listed above; a Walmart listing found in the same research pass showed $679 for the same model, pricing moves across retailers, so treat the number as a snapshot rather than a fixed price. We did not find a current, authoritative listing on launchtechusa.com or x431.com for this specific model, launch-tool.com was the most complete manufacturer-adjacent source available and is used here as a labeled fallback, not Launch’s own primary U.S. storefront.

Who This Scanner Actually Fits

This fits a shop or technician who wants real bidirectional active tests and offline component matching, part swaps that need re-initialization, gearbox or seat module replacement, headlight adaptation, and who’s comfortable with a wired USB connection rather than a wireless VCI. It’s a reasonable middle tier for a shop that has outgrown a basic code reader but doesn’t need J2534 pass-through programming. The FCA AutoAuth support and included VAG guided function also make it a reasonable pick for a shop with a meaningful chunk of Stellantis and VW-group work, since both are bundled rather than sold as separate licenses.

It’s the wrong tool if you read “ECU Code” on the Amazon listing and pictured online coding or programming access, Launch’s own documentation for this exact model rules that out. It’s also not the pick if a wireless connection matters to your workflow, or if you specifically need J2534 pass-through for factory-level programming, the PRO3S+ Elite is the documented choice for that. And if your shop’s coding needs are narrower, mostly VAG-brand online coding rather than a broad set of offline matching functions, the CRP919EBT covers that specific case at a lower price with Bluetooth built in.

Important Limitations

Launch’s own page explicitly states no online or offline ECU programming and no online ECU coding, only the offline component-matching functions listed above. No wireless connectivity (Wi-Fi or Bluetooth) is documented for vehicle connection, it’s a wired cable connection. We could not locate a current listing on Launch’s own primary U.S. domains (launchtechusa.com or x431.com) for this exact model; pricing and specification details here draw on Launch’s international product page (launch-tool.com) and the Amazon listing, both labeled as such.

Choose It, Skip It, or Consider Something Else

Choose the PRO Elite if you want confirmed bidirectional active tests and offline component-matching functions, gearbox matching, headlight fitting, seat matching, on an 8-inch tablet, and a wired connection isn’t a problem.

Skip it if you need online ECU coding or programming, Launch’s own documentation for this exact model rules that out, regardless of what Amazon’s title implies.

Consider the Launch X431 PRO3S+ Elite instead if you need J2534 pass-through programming for factory-level coding, at a meaningfully higher price.

Consider the Launch X431 CRP919EBT instead if you want bundled ECU coding and Bluetooth connectivity at a lower price, without the PRO Elite’s larger screen.

How we evaluated it: SCG evaluates scanner specifications, diagnostic capabilities, vehicle compatibility, update policy, and the exact Amazon listing against manufacturer documentation and the SCG Master Data system. SCG has not physically tested this scanner unless explicitly stated otherwise.
Data last verified: 2026-08-28.
Methodology: How SCG Evaluates OBD2 Scanners.

Our Verdict

The PRO Elite is a genuinely capable bidirectional tool with a real, if narrower than advertised, set of coding-adjacent functions. The core issue isn’t the tool’s actual capability, it’s that Amazon’s one-line “ECU Code” claim doesn’t match what Launch’s own product page spells out in detail: no online coding, no programming, offline component matching only. Buy it for bidirectional testing and component matching. Don’t buy it expecting online coding, and if that’s what you need, look at the PRO3S+ Elite’s J2534 hardware instead.

Frequently Asked Questions

Does the PRO Elite really support ECU coding?

Only in a limited, offline sense, component matching and adaptation functions like gearbox matching, headlight fitting, and seat matching. Launch’s own product page explicitly states it does not support online or offline ECU programming or online ECU coding, despite Amazon’s shorter “ECU Code” title.

Does the PRO Elite connect wirelessly?

No wireless connectivity is documented for this model. It connects to the vehicle over a wired cable, unlike Launch’s own PROS V5.0, which uses a wireless DBScar VII connector.

Is the PRO Elite the same as the PRO3S+ 5.0?

Amazon’s listing claims this, but that’s a different Launch product than the J2534-capable PRO3S+ Elite in SCG’s catalog, and Launch’s own PRO Elite page doesn’t confirm the equivalence. Treat it as unverified.

Is the PRO Elite compatible with my vehicle?

Our data confirms it against a range of makes and generations in SCG’s database, but exact coverage depends on your specific year, make, and model. Use the Finder to confirm your vehicle rather than relying on the general brand-coverage figure.

How many service functions does the PRO Elite actually have?

Launch’s own product page states 32+, while Amazon’s listing title states 38+. Neither figure is dramatically different from the other, but they don’t match exactly, treat 32+ as the more conservative, manufacturer-documented floor.
